PL 70.20 3TM for Xerox VersaLink C7020 C7025 C7030 C7000 Printer
Posted by Xwk Tech on

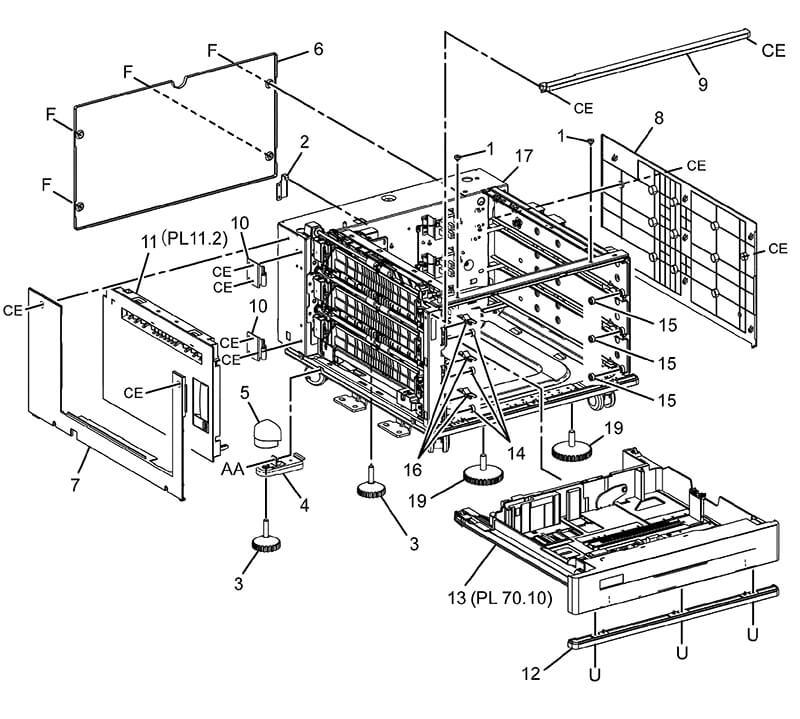

PL 70.20 3TM (1 of 4)
**This PL 70.20 is from Xerox Service Manual. All brand names and trademarks are their respective owner's property.**
You may be also interested in below toner and drum chip (CRUM) for Xerox VersaLink C7020, C7025, C7030, C7000.
Toner Chip (For North America and West Europe Region):
• 106R03741 106R03744 106R03743 106R03742
• 106R03757 106R03760 106R03759 106R03758
• 106R03737 106R03740 106R03739 106R03738
Toner Chip (For South America and East Europe Region):
• 106R03749 106R03752 106R03751 106R03750
• 106R03745 106R03748 106R03747 106R03746
• 106R03765 106R03768 106R03767 106R03766
Toner Chip (For Metered Machine):
• 106R03733 106R03736 106R03735 106R03734
Drum Chip:
• 113R00780 113R00782
| Item | Part | Description |
| 1 | - | Docking screw (Not Spared) |
| 2 | - | Joint bracket (Not Spared) |
| 3 | - | Rear adjustable foot (Not Spared) |
| 4 | - | Left bracket (Not Spared) |
| 5 | - | Bracket cover (Not Spared) |
| 6 | - | Rear cover (Not Spared) |
| 7 | - | Left cover (Not Spared) |
| 8 | - | Right cover (Not Spared) |
| 9 | - | MA top cover (Not Spared) |
| 10 | - | Hinge frame bracket (Not Spared) |
| 11 | - | Left cover assembly (Not Spared) |
| 12 | - | Foot MA cover (Not Spared) |
| 13 | - | A3 tray assembly (REF: PL 70.10) |
| 14 | 059E03500 | Front left roller |
| 15 | 059E08410 | Front right roller |
| 16 | 003E75431 | Front right TM stopper |
| 17 | - | Frame assembly (Not Spared) |
| 18 | - | Not used |
| 19 | - | Front adjustable foot (Not Spared) |
